01
Proportional control
Use the wheel to steer and the trigger to control the throttle. Your inputs translate into proportional changes in the vehicle's response.
1 / 1

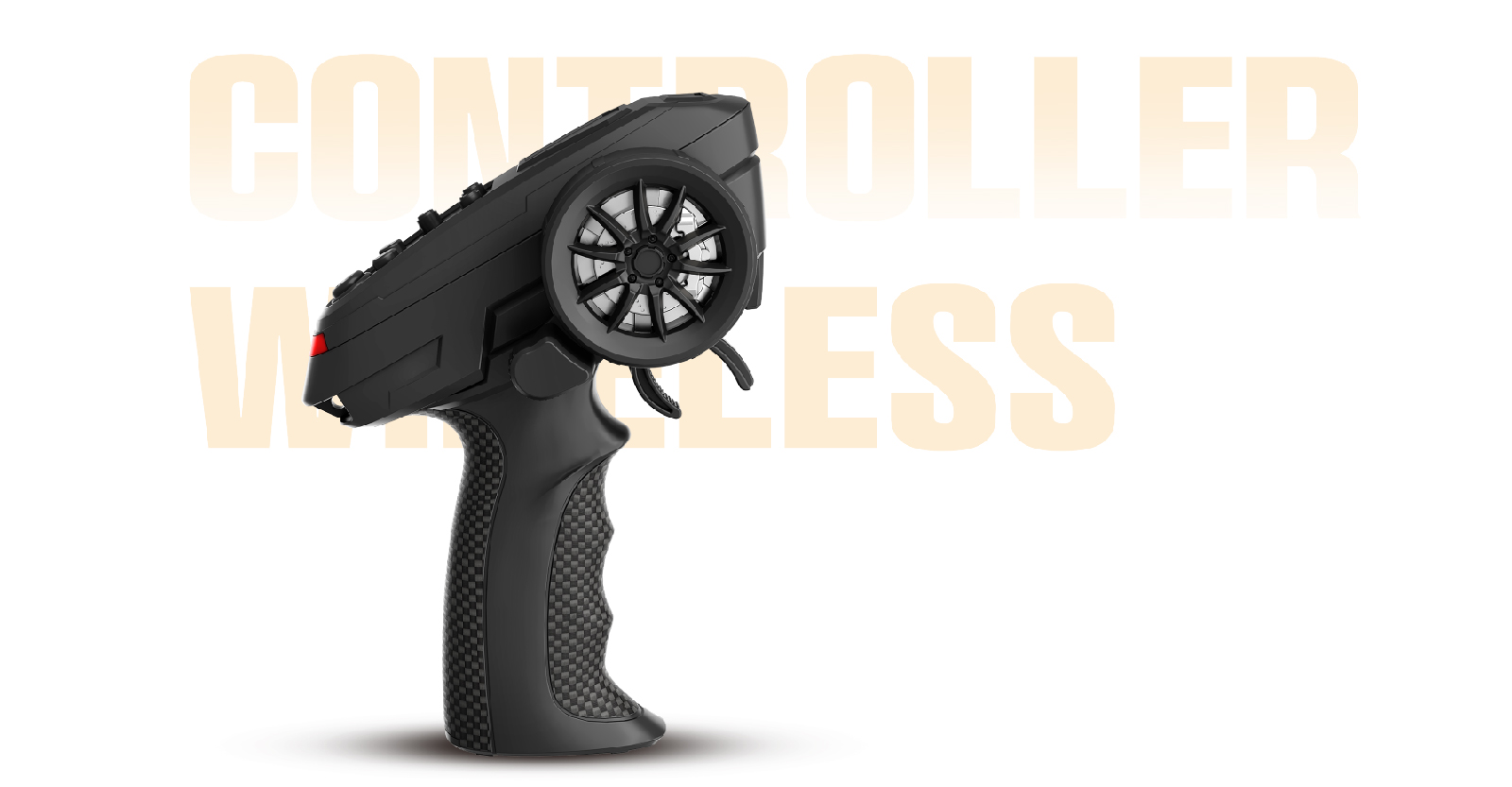

PRO Drive Accessories Series · PD-001
Pistol Grip Transmitter
PD-001
A steering wheel and throttle trigger deliver proportional control, with steering, throttle, gyro sensitivity and lighting adjustments all within reach.
- Radio band
- 2.4 GHz
- Ground control range
- >120 m
- Control type
- Proportional
FUNCTION
Control at your fingertips.
02
Find your preferred feel
Adjust throttle output, steering trim and gyro sensitivity independently, and reverse the steering direction when needed.
03
Wireless control, connected lighting
2.4 GHz communication with automatic pairing, plus a dedicated button for lighting modes.
DESIGN & CONTROLS

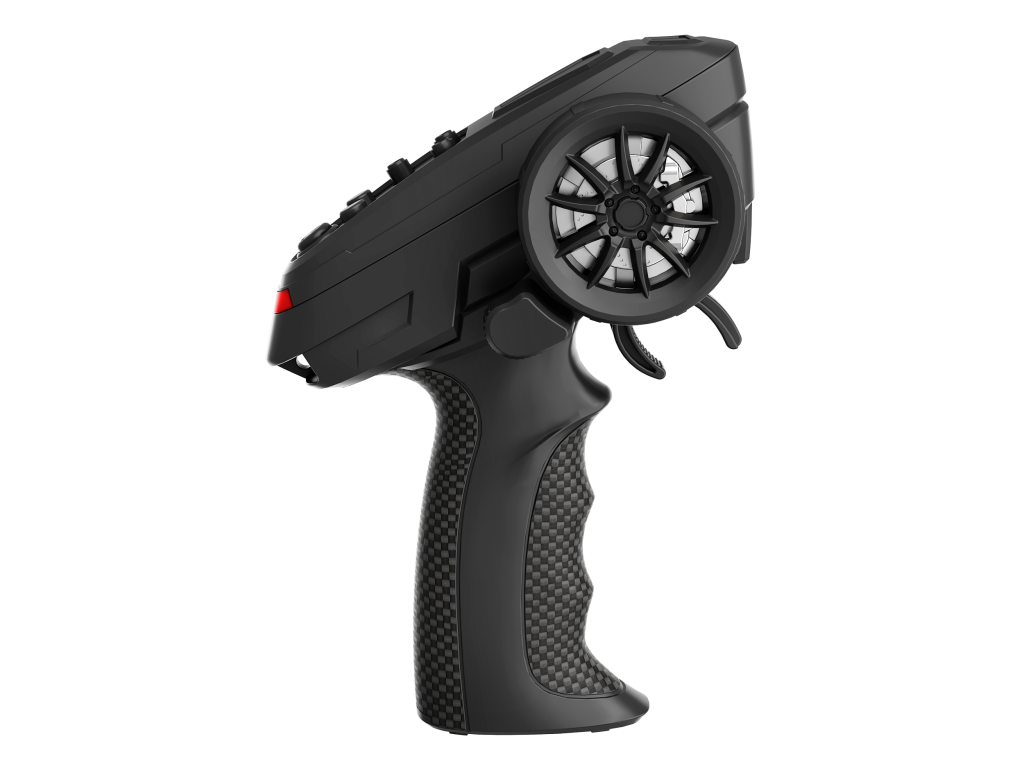

Get to know every control.
Select a number to learn about that part
The steering wheel controls the vehicle's direction, while the throttle trigger controls its power. The two work together, with proportional steering giving you more control than a simple on/off response.
Use this dial to adjust throttle output to your preferred driving feel. It works alongside the throttle trigger: the dial sets the output level, while the trigger provides continuous control as you drive.
Fine-tune the steering servo's neutral position. With the steering wheel centered, adjust this dial to align the vehicle's steering with the wheel's center position.
Adjust gyro sensitivity directly from the transmitter. When used with a compatible control system, the dial lets you fine-tune the gyro's response to suit your driving needs.
Reverse the steering response if the vehicle turns in the opposite direction to your input. This switch controls steering direction independently of the throttle settings.
Turn the transmitter on or off before and after use. It runs on two AA batteries. In the battery compartment view below, click the button to see inside.
Change the modes of compatible lighting directly from the transmitter while driving. Available effects depend on the connected lighting components and control system.
Located below the steering wheel, the trigger provides proportional throttle control while the wheel handles steering. Use the throttle rate dial above to adjust output separately from your trigger input.
PRODUCT INFORMATION
Connections & Performance
PD-001 combines wireless control with AA battery power.
Wireless connection
Operates in the 2.4 GHz ISM band with GFSK modulation and automatic pairing.
Power supply
Powered by 2 AA batteries at 2.2–3.0 V.
About the control range
¹ The official website lists a ground control range of more than 120 meters. Actual range varies with the environment and radio interference.
Specifications
- Item number
- PD-001
- Radio band
- 2.4 GHz ISM
- Modulation method
- GFSK
- Control type
- Proportional control
- Ground control range
- >120 m
- Receiver sensitivity
- −90 dBm
- Supply voltage
- 2.2–3.0 V
- Battery specifications
- 2 × AA

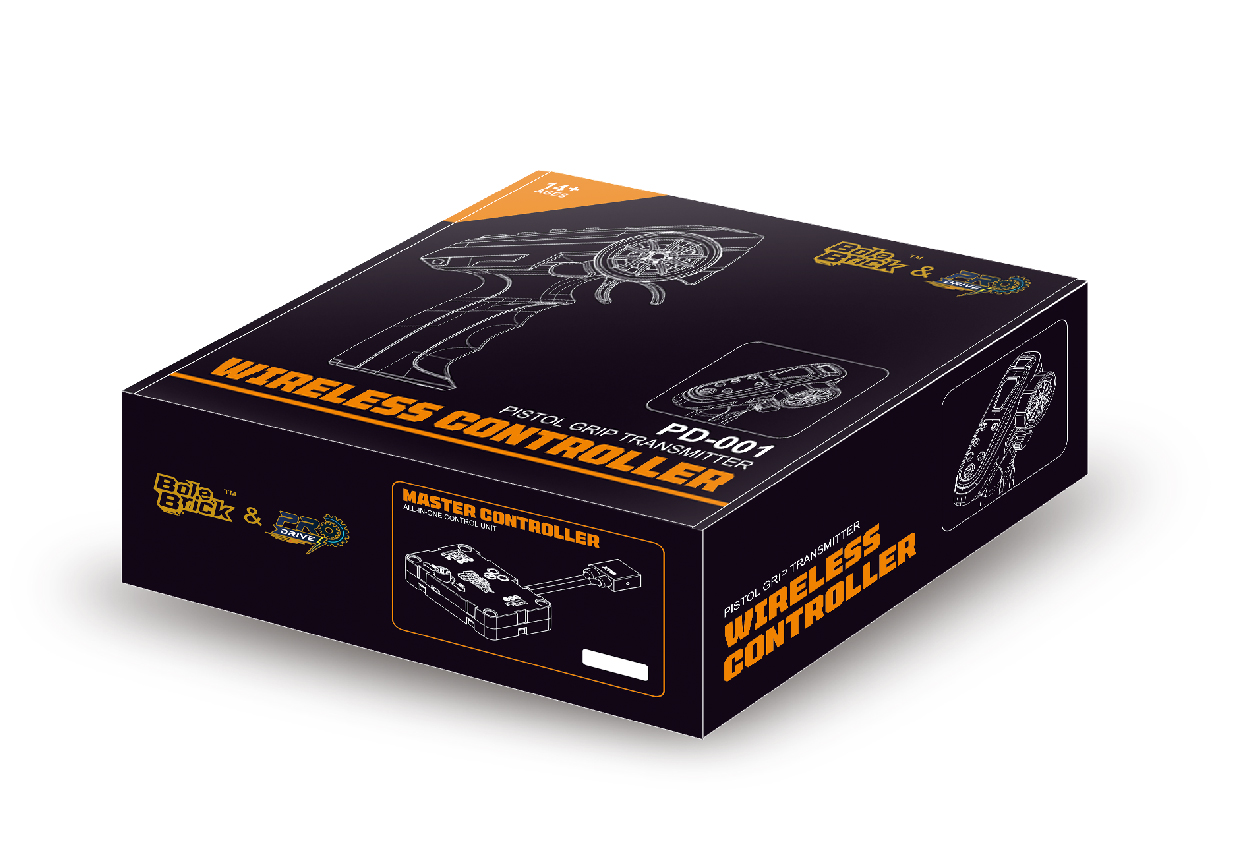

- Box dimensions
- 180 × 160 × 78 mm
USER GUIDE
Get to know the controls before you start.
Read the PD-001 manual for operating and setup instructions.
