01
2000 mAh capacity
The battery label specifies a capacity of 2000 mAh and energy of 15.4 Wh to power your model's drive system.
1 / 1
PRO Drive Accessories Series

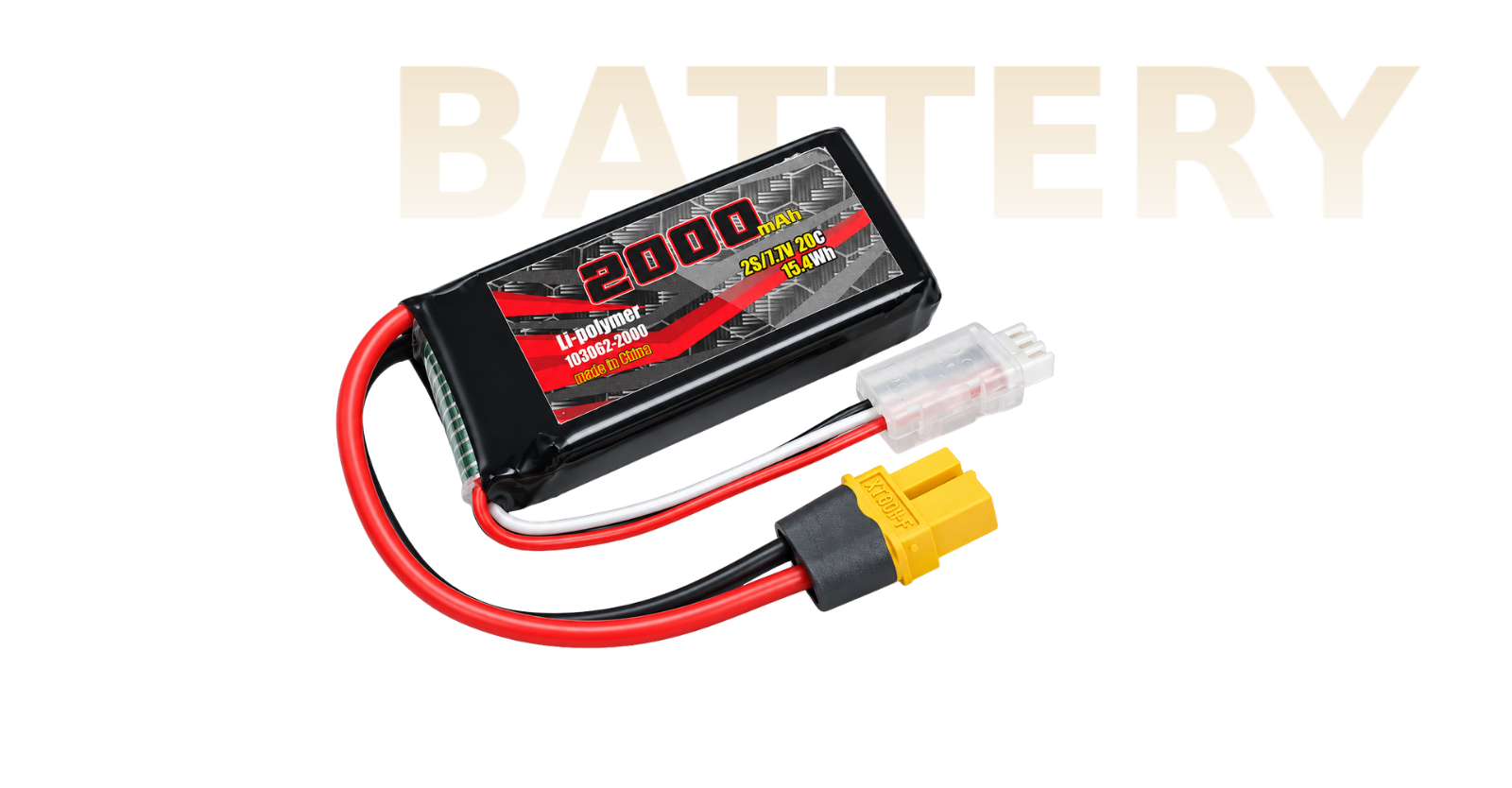

7.7V High-Voltage LiPo Battery Pack
PD-011
A 2000 mAh high-voltage LiPo battery pack with a 2S cell configuration and nominal voltage of 7.7 V. Includes an XT60 power connector and a 3-pin balance charging connector.
- Capacity
- 2000 mAh
- Nominal voltage
- 7.7 V
- Discharge rate
- 20C
FUNCTION
Key Features
02
2S high-voltage battery pack
Uses a 2S cell configuration with a nominal voltage of 7.7 V and a labeled discharge rating of 20C.
03
Separate power and charging connections
An XT60 connector supplies power, with a separate XH 2.54 mm 3-pin connector for balance charging.
DESIGN & CONTROLS
Structure & Controls
Select a number to learn about that part
A 2000 mAh LiPo battery pack labeled 2S / 7.7 V, 20C and 15.4 Wh.
The yellow XT60 plug provides the power connection. Check the connected equipment's voltage requirements and connector polarity before installation.
The white XH 2.54 mm 3-pin connector is used for balance charging.
PRODUCT INFORMATION
Connections & Performance
A 2000 mAh high-voltage LiPo battery pack with a 2S cell configuration and nominal voltage of 7.7 V. Includes an XT60 power connector and a 3-pin balance charging connector.
Power connection
The XT60 power connector and balance charging connector are separate. Check your equipment's connection requirements before use.
Charging connection
Use the XH 2.54 mm 3-pin balance connector with compatible equipment and follow the supplied instructions.
Specifications
- Item number
- PD-011
- Battery type
- High-voltage LiPo battery pack
- Capacity
- 2000 mAh
- Cell configuration
- 2S
- Nominal voltage
- 7.7 V
- Discharge rate
- 20C
- Energy
- 15.4 Wh
- Power connector
- XT60
- Balance charging connector
- XH 2.54 mm, 3-pin

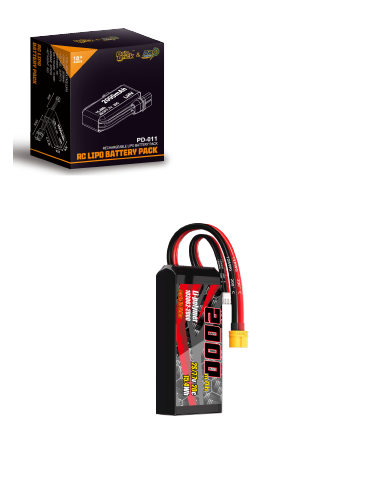

- Box dimensions
- 88 × 68 × 40 mm
USER GUIDE
User Manual
View the product's PDF instruction manual.
