01
Dual-bearing support
Two bearings keep the hub aligned and support the drivetrain.
1 / 1
PRO Drive Accessories Series
11950 CV Drive Hub
PD-007

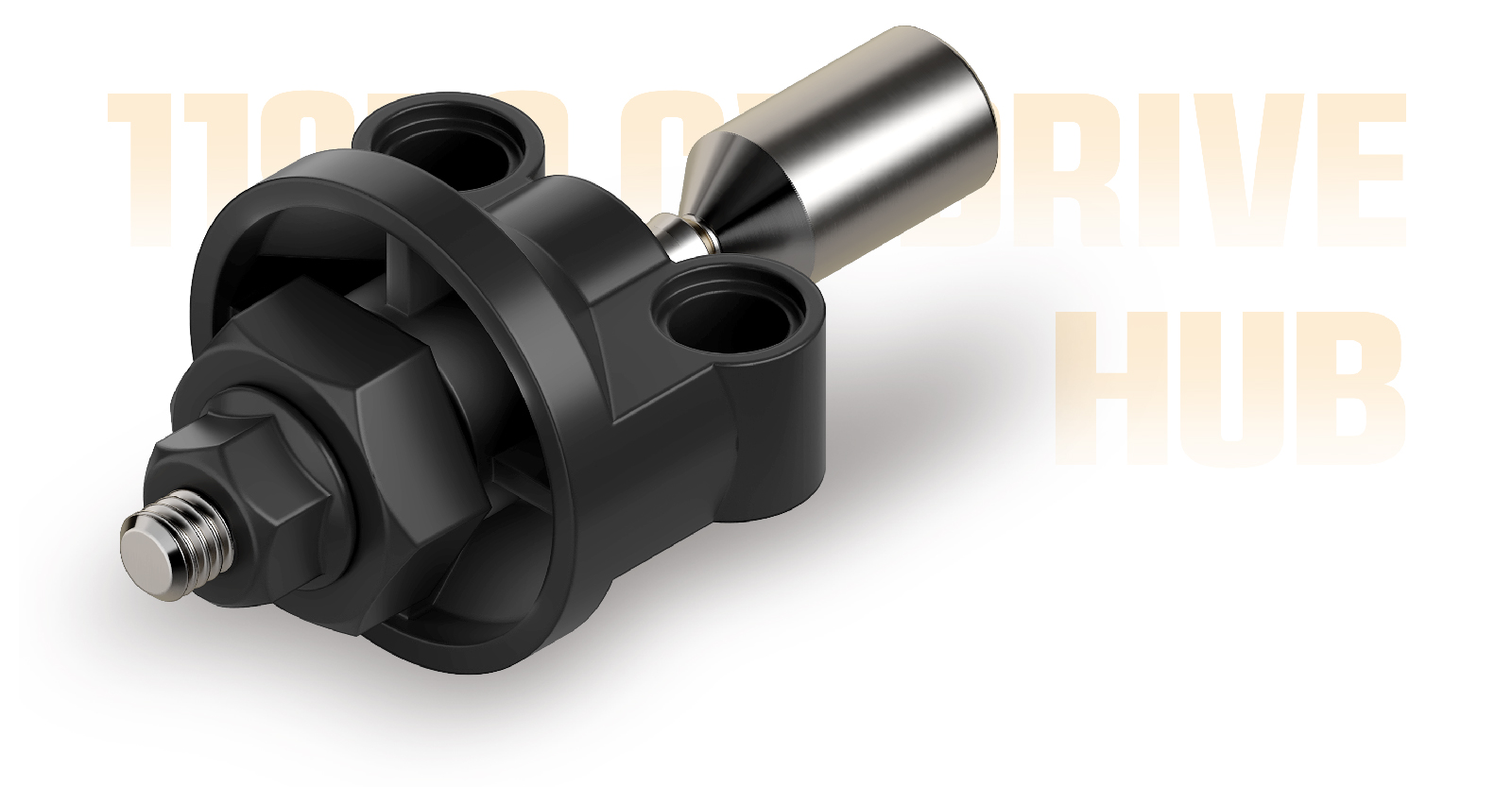

The 11950 CV Drive Hub combines a metal constant-velocity drive shaft with dedicated bearing support for motorized brick-model drivetrains.
- Rated input torque
- 10 kgf·cm
- Rated input speed
- 7,000 rpm
- Support design
- Dual bearings
FUNCTION
Key Features
02
Metal drive shaft
A metal drive shaft transmits power, with an official rated input torque of 10 kgf·cm.
03
Constant-velocity joint
The constant-velocity drive shaft allows a maximum joint angle of 40° on one side.
DESIGN & CONTROLS
Structure & Controls
Select a number to learn about that part

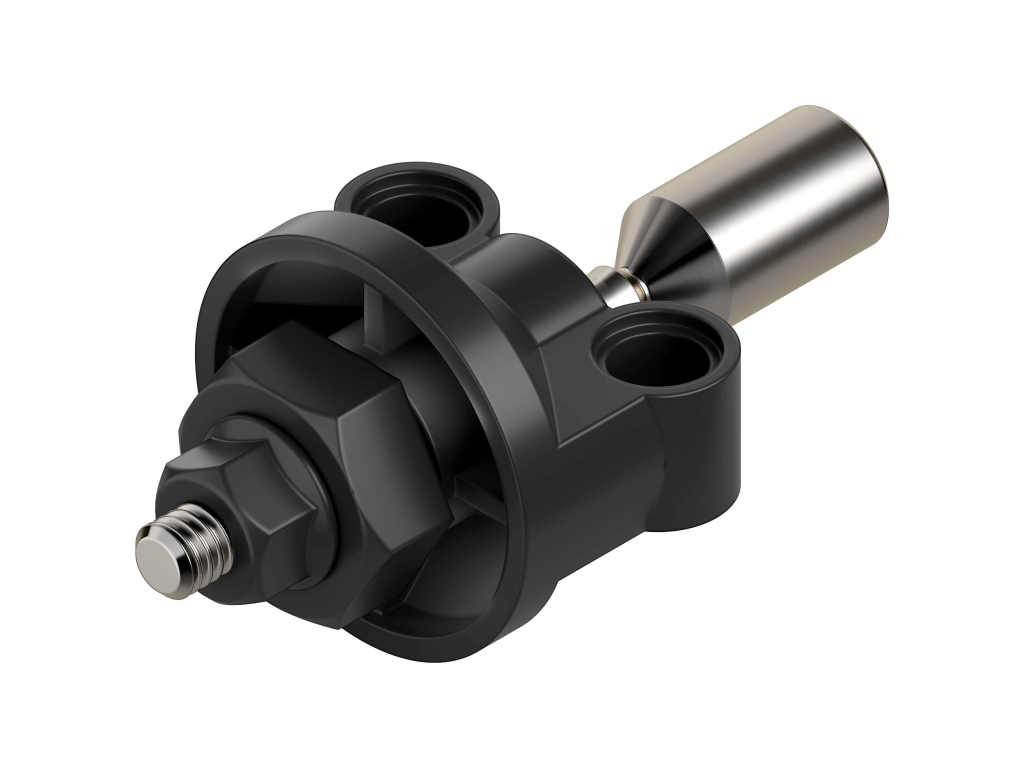

Two bearings support the drive shaft. The cutaway shows where they fit.
A metal constant-velocity drive shaft with an officially specified maximum joint angle of 40° on one side.
PRODUCT INFORMATION
Connections & Performance
The 11950 CV Drive Hub combines a metal constant-velocity drive shaft with dedicated bearing support for motorized brick-model drivetrains.
Hex adapter
The image shows the 12 mm hex adapter. An accessory installation diagram is also available on the official website.
Ball bearings
Two bearings support the drive shaft. The cutaway shows where they fit.
Constant-velocity drive shaft
A metal constant-velocity drive shaft with an officially specified maximum joint angle of 40° on one side.
Specifications
- Item number
- PD-007
- Drive shaft material
- Metal
- Rated input torque
- 10 kgf·cm
- Rated input speed
- 7,000 rpm
- Bearing type
- Ball bearings (dual-bearing design)
- Maximum joint angle on one side
- 40°
- Package dimensions
- 90 × 120 mm
USER GUIDE
User Manual
Download the official PDF manual for this product.
