PRO Drive Accessories Series

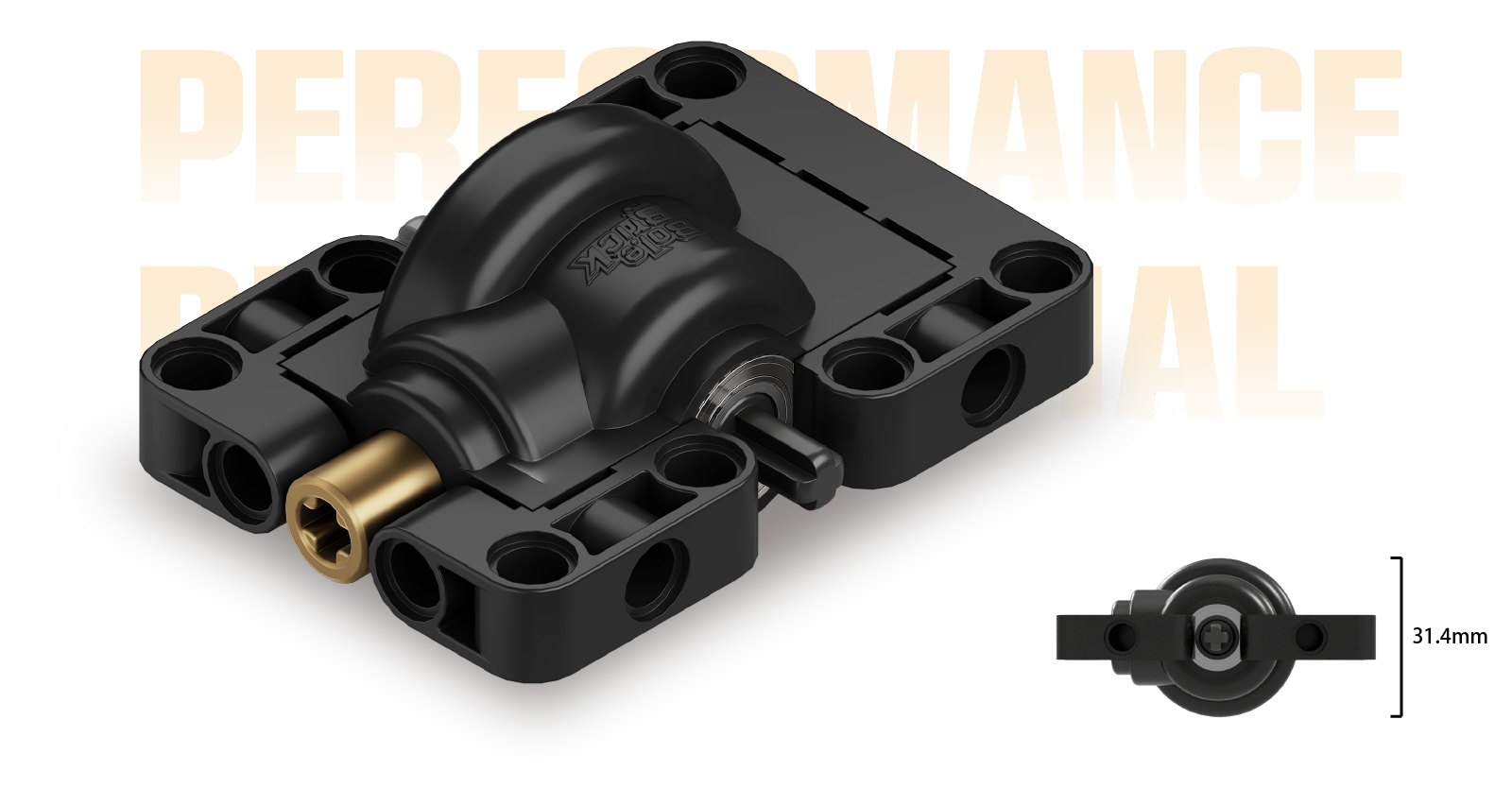

Single-Input Square Differential Module

PD-005

A single-input square module combining a differential, metal gears and bearing support to distribute power within your brick model.

FUNCTION

Key Features

The differential and its bearing supports form a single module for easier installation in a brick-built drivetrain.

All-metal drive gears work with nylon output shafts to form the differential mechanism.

Features 3 built-in ball bearings and an official rated input speed of 7,000 rpm.

DESIGN & CONTROLS

Select a number to learn about that part

The cutaway shows the module's metal gears. The official specifications list a reduction ratio of 2.15:1 and rated input torque of 10 kgf·cm.

Nylon output shafts transfer power from the differential module to the rest of the drivetrain.

Three built-in ball bearings support the differential's moving components. Their positions are shown in the image.

PRODUCT INFORMATION

A single-input square module combining a differential, metal gears and bearing support to distribute power within your brick model.

Metal gears

The cutaway shows the module's metal gears. The official specifications list a reduction ratio of 2.15:1 and rated input torque of 10 kgf·cm.

Nylon output shaft

Nylon output shafts transfer power from the differential module to the rest of the drivetrain.

Ball bearings

Three built-in ball bearings support the differential's moving components. Their positions are shown in the image.
