01
380 motor power
A high-performance 380 motor with an official rated speed of 6,000 rpm and stall torque of 4.8 kgf·cm.
1 / 1
PRO Drive Accessories Series
Drive Motor
PD-003

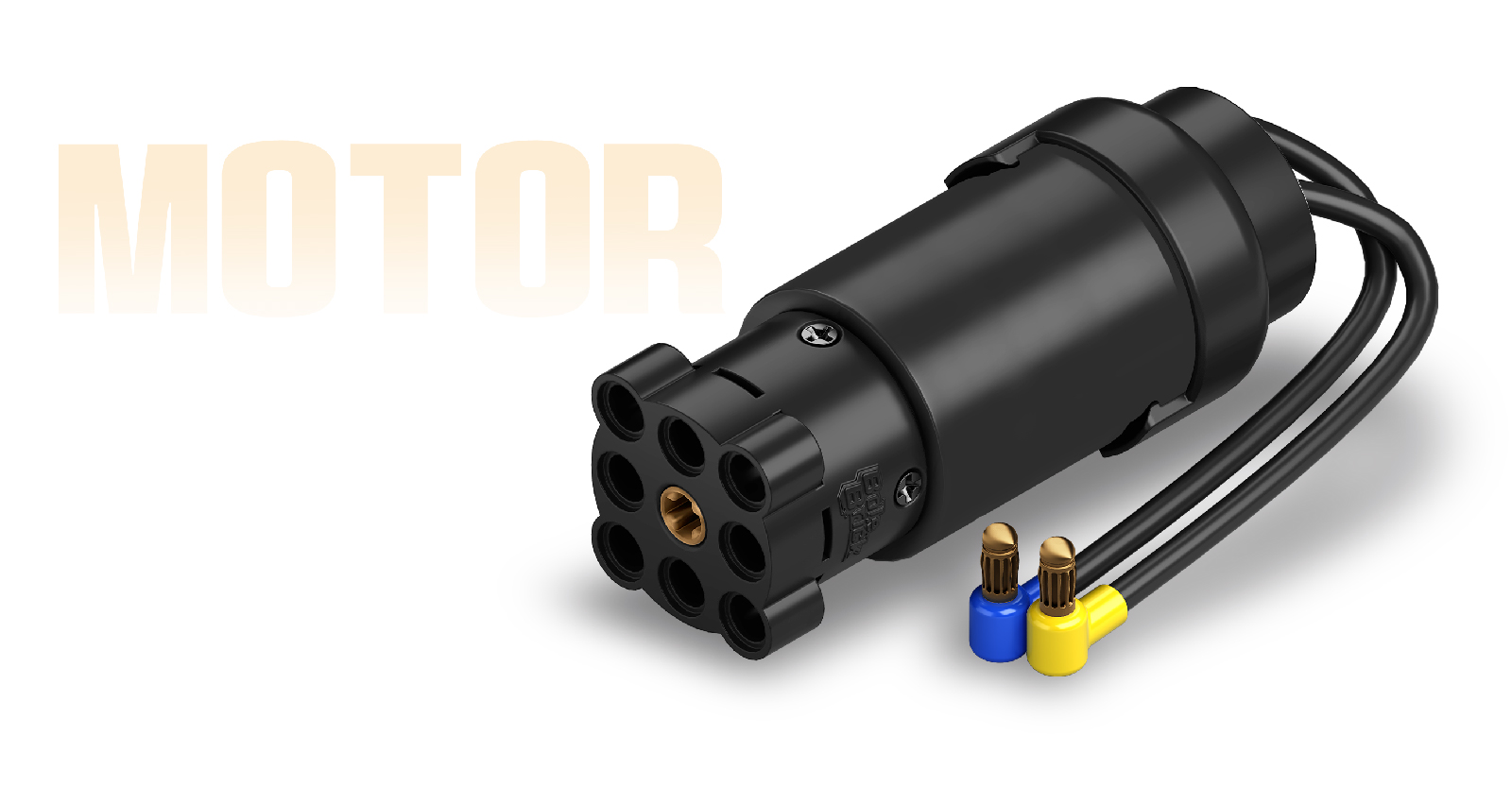

A 380 motor, metal drivetrain components and a built-in ball bearing deliver power to your motorized brick model, housed in an open nylon casing.
- Rated speed
- 6,000 rpm
- Stall torque
- 4.8 kgf·cm
- Reduction ratio
- 1:4
FUNCTION
Key Features
02
Metal drivetrain and bearing support
All-metal drivetrain components work with a built-in ball bearing to transfer power.
03
Open nylon housing
The open housing helps dissipate heat, while nylon provides heat and impact resistance in a shape designed to fit brick systems.
DESIGN & CONTROLS
Structure & Controls
Select a number to learn about that part
The rear cylinder houses the 380 motor, which drives the model through the reduction gearing at the front. The official specification lists a reduction ratio of 1:4.
A 3.5 mm spring-loaded safety banana plug connects the motor to the control unit.
The front cutaway reveals the metal drive gears. The official specification confirms that the drivetrain components are metal.
A built-in ball bearing supports the moving components within the motor's drivetrain.
PRODUCT INFORMATION
Connections & Performance
A 380 motor, metal drivetrain components and a built-in ball bearing deliver power to your motorized brick model, housed in an open nylon casing.
380 motor
The rear cylinder houses the 380 motor, which drives the model through the reduction gearing at the front. The official specification lists a reduction ratio of 1:4.
3.5 mm plug
A 3.5 mm spring-loaded safety banana plug connects the motor to the control unit.
Metal drivetrain components
The front cutaway reveals the metal drive gears. The official specification confirms that the drivetrain components are metal.
Ball bearings
A built-in ball bearing supports the moving components within the motor's drivetrain.
Specifications
- Item number
- PD-003
- Rated speed
- 6,000 rpm
- Stall torque
- 4.8 kgf·cm
- Gear material
- Metal
- Reduction ratio
- 1:4
- Box dimensions
- 68 × 40 × 88 mm
USER GUIDE
User Manual
Download the official PDF manual for this product.
