01
An integrated control system
The combined ESC and receiver reduce the number of separate components you need to fit into a compact chassis.
1 / 1
PRO Drive Accessories Series
All-in-One Control Unit
PD-002
A compact module that combines an electronic speed controller (ESC), receiver and gyro, with connections for drive power, steering and lighting in your brick-built vehicle.
- Input voltage
- 6.0–9.0 V
- Continuous current
- 30 A
- Motor output
- 1 channel
FUNCTION
Key Features
02
Connections for more functions
Includes 1 high-power motor output, 2 servo outputs and 1 synchronized lighting connection.
03
Gyro assist
A built-in gyro helps stabilize the vehicle, with support for lighting that responds to its movements.
DESIGN & CONTROLS
Structure & Controls
Select a number to learn about that part
Connect a drive battery using the XT60 connector. The official specification lists a 6.0–9.0 V input range for a 2S LiPo battery.
A 3.5 mm connector provides the module's single high-power motor output.
Connect a PWM-controlled steering servo here. This connection is separate from the auxiliary servo output.
Turn the module on or off using the switch marked ON / OFF in the image.
Switch between normal and reversed gyro response for use with the module's built-in stabilization system.
Connect the Responsive Lighting Module to synchronize lighting with the vehicle's movements. An auxiliary servo connection provides a second output alongside the steering channel.
PRODUCT INFORMATION
Connections & Performance

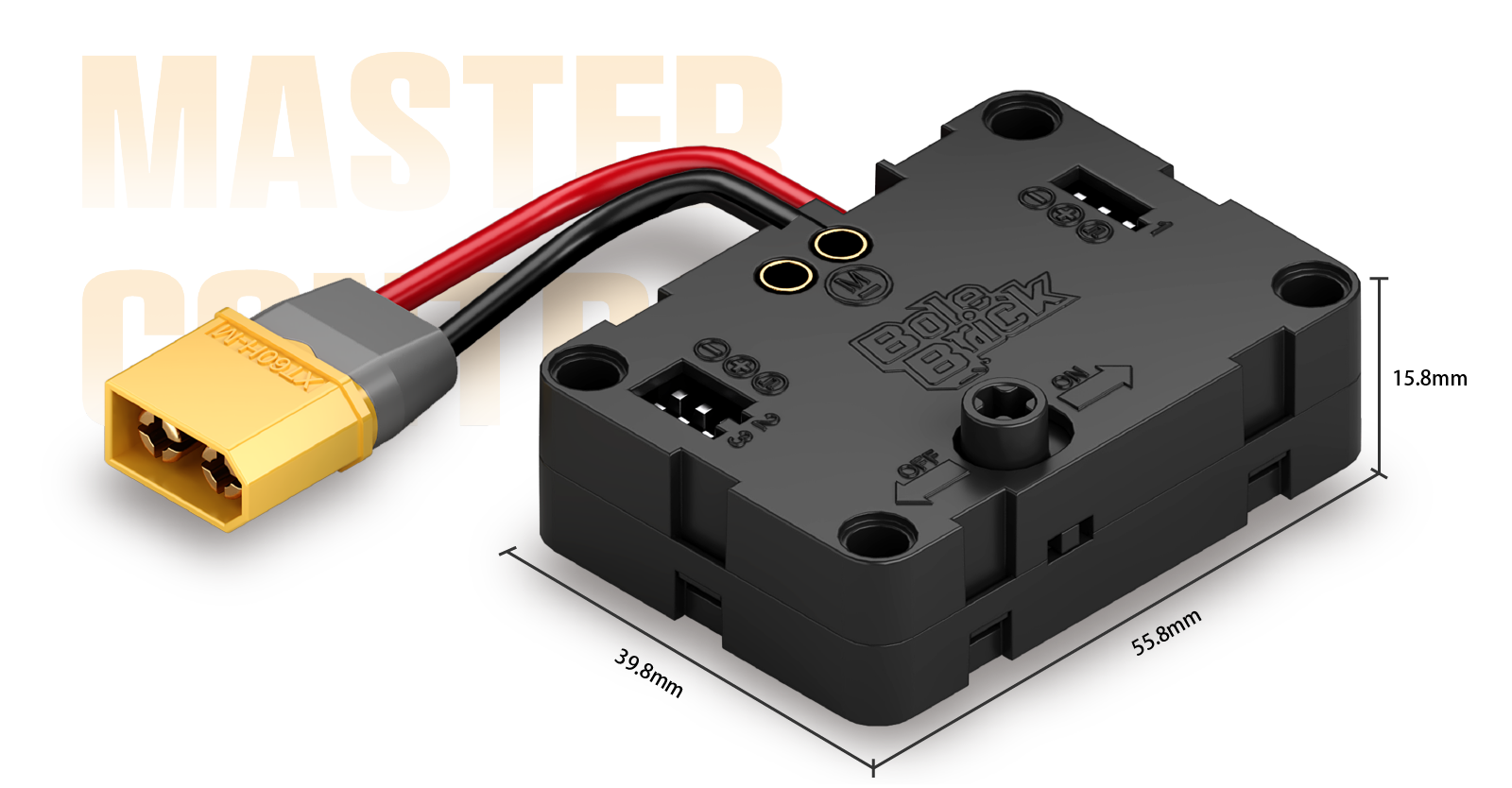

A compact module that combines an electronic speed controller (ESC), receiver and gyro, with connections for drive power, steering and lighting in your brick-built vehicle.
XT60 power connector
Connect a drive battery using the XT60 connector. The official specification lists a 6.0–9.0 V input range for a 2S LiPo battery.
Motor output connector
A 3.5 mm connector provides the module's single high-power motor output.
Steering servo connector
Connect a PWM-controlled steering servo here. This connection is separate from the auxiliary servo output.
Power switch
Turn the module on or off using the switch marked ON / OFF in the image.
Gyro reverse switch
Switch between normal and reversed gyro response for use with the module's built-in stabilization system.
Synchronized lighting connector
Connect the Responsive Lighting Module to make the lights respond to the vehicle's movements.
Auxiliary servo connector
Adds a second servo connection alongside the steering output, for a total of 2 servo outputs.
Specifications
- Item number
- PD-002
- Operating mode
- Forward/reverse with braking
- BEC output
- 5 V / 1.2 A
- Maximum continuous current
- 30 A
- Maximum peak current
- 80 A
- Input voltage
- 6.0–9.0 V（2S LiPo）
- Box dimensions
- 68 × 40 × 88 mm
USER GUIDE
User Manual
Download the official PDF manual for this product.
